Product Introduction
Application of Limestone Micronizer Vertical Roller Micronizer Mill
Limestone Micronizer Vertical Roller Micronizer Mill For Sale are suitable for huge capacity producing, widely used in Micronizer non-flammable and non-explosive materials under 9.3(the Moh's hardness), such as quartz, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.
Limestone Micronizer Vertical Roller Micronizer Mill Technical Data
| Model | CLUM1425 | CLUM1632 | CLUM1736 |
| Plate Diameters(mm) | 1400 | 1600 | 1700 |
| Number of rollers(pieces) | 3 | 3 | 3 |
| Number of classifier(pieces) | 5 | 7 | 7 |
| Powder of classifier(KW) | 5*15 | 7*15 | 7*(15-18.5) |
| Main unit powder(KW) | 250 | 315 | 355 |
| Blower powder(KW) | 200 | 250 | 315 |
| Feed size(mm) | <10mm | <10mm | <10mm |
| Moisture of feeding material | <3% | <3% | <3% |
| Less than 2μ m=34% output (t/h) | 11-14 | 13-17 | 15-19 |
| Less than 2μ m=46% output (t/h) | 7-8 | 9-10 | 11-12 |
| Less than 2μ m=60% output (t/h) | 3-4 | / | / |

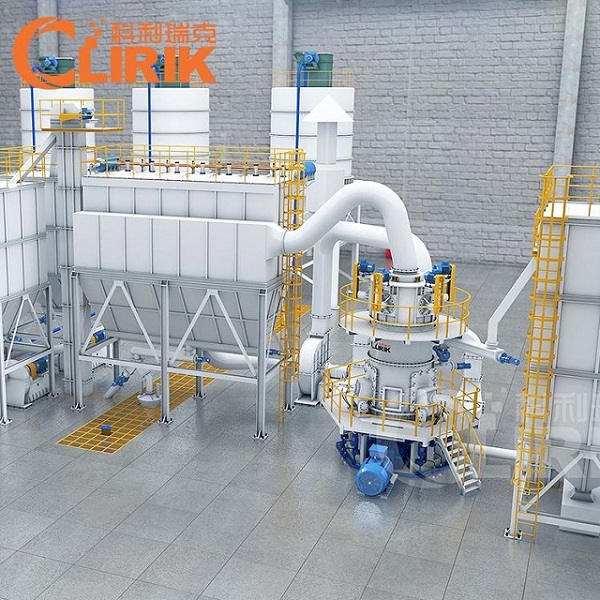

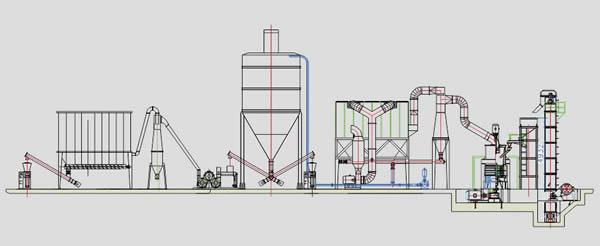

Working Principle of Limestone Micronizer Vertical Roller Micronizer Mill
The Micronizer disc is driving by motor through reducer. The material falls to Micronizer disc from the feed opening. The materials are driven to the edge of disc by the centrifugal force and crushed into fine powders by rollers. Then, the hot air from the nozzle take the fine powder to high effiency classsifer.The qualified powder are taken by the air to the powder collector to be collected, while the unqualified powder are sent back for reMicronizer.
Advantages of Limestone Micronizer Vertical Roller Micronizer Mill
1. High Micronizer efficiency: save 20~30% power consumption compared with the ball mill. With the increasing of moisture content, it can save more and more electricity.
2. Strong drying capacity: dry and grind raw materials with moisture content as much as 15%.
3. Mutifunction: crushing, drying, Micronizer, separating and conveying.
4. Low noises and little dust: no direct contact between the Micronizer rollers and Micronizer disc, so metallic impact is avoided and its noises is 20~25 decibels lower. Totally closed negative pressure operation has employed by this vertical Micronizer mill, so there is no dust during the operation.
5. Low wear rate and little metallic pollution: its metal wear is only 5~10g/t.

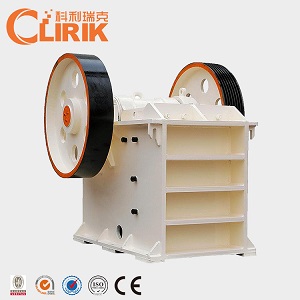

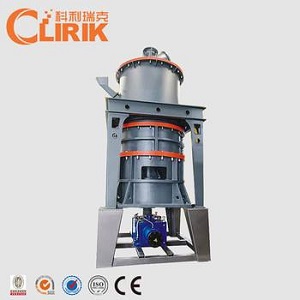

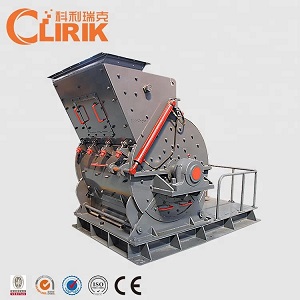

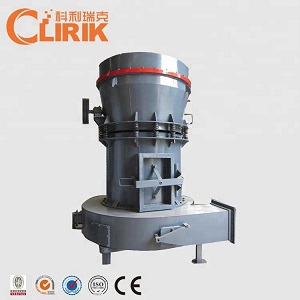

Hot sale limestone micronizer mill:
Our Certification

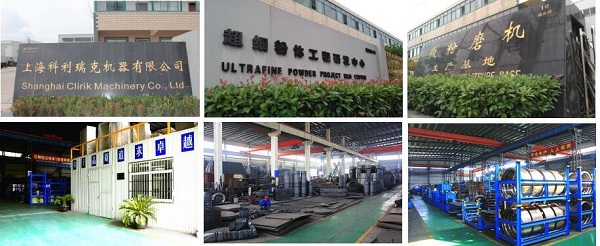

Our Company
Packing&Shipping
FAQ
Q: Are your Limestone Micronizer Vertical Roller Micronizer Mill can procee the slag and other hard materials?
A: Our Limestone Micronizer Vertical Roller Micronizer Mill are made by hard materials, so it can be used in slag, cement and other hard materials grinding.
Q: What the fineness range of the Limestone Micronizer Vertical Roller Micronizer Mill?
A: It can be adjusted between 300 mesh to 4000 mesh.
Q: Are you a manufacturer or middleman?
A: Our Shanghai Clirik is a professional Limestone Micronizer Vertical Roller Micronizer Mill manufacturer.
