Calcite Stone Micronizer

Introduction of Calcite Stone Micronizer     There are five models of Calcite Stone Micronizer in our Shanghai Clirik Machinery, they are HGM80, HGM90, HGM100, HGM125 and HGM1680; the ultra fine powder grinding mill is the new type mining equipment for making micro powders, […]

Get Price

Send Email

Product Introduction

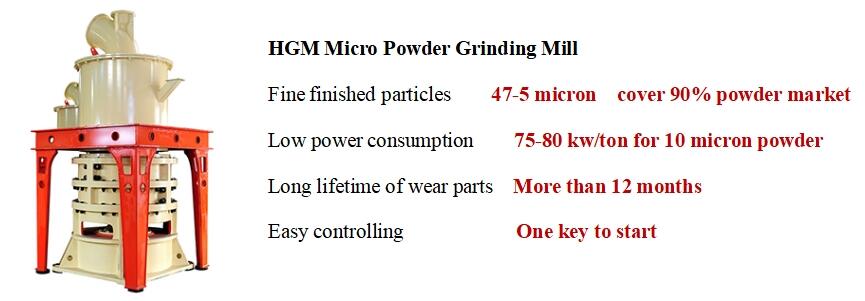

Introduction of Calcite Stone Micronizer
Calcite Stone Micronizer


There are five models of Calcite Stone Micronizer in our Shanghai Clirik Machinery, they are HGM80, HGM90, HGM100, HGM125 and HGM1680; the ultra fine powder grinding mill is the new type mining equipment for making micro powders, fine powders,which is widely applied in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics, and so on.The purpose of the micro powder grinding millis for super-fine grinding materials with hardness less than 9 in Moh's scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds.

Technology Data of Calcite Stone Micronizer

Model HGM80 HGM90 HGM100 HGM125 HGM1680
Ring Diameter(mm) 800 900 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4
Roller Number(PCS) 18-21 24-29 28-36 30-40 30-44
Main Shaft Speed
(r. p. min)
230-240 200-220 180-200 135-155 120-130
Input Size (mm) ≤20 ≤20 ≤20 ≤20 ≤20
Finished Size (um/mesh) 74-5
(200-2500)
74-5
(200-2500)
74-5
(200-2500)
100-6
(150-2000)
100-9
(150-1500)
Capacity (t/h) 0.5-4.5 0.6-6.5 1-9 2.8-20 5-45
Outlet Size
L*W*H (m)
13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 14*9*10.25 26.3*7.5*11.9



Working Principle of Calcite Stone Micronizer Calcite Stone Micronizer

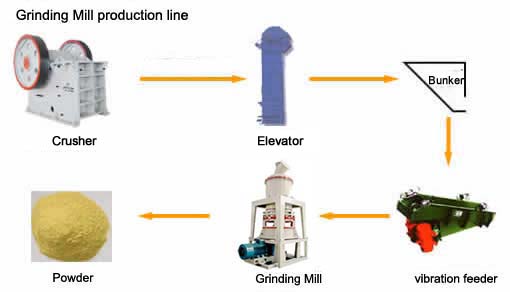

A whole powder grinding production line includes hammer crusher/jaw crusher, ultrafine mill, bucket elevator, hopper, screw feeder, grinder unit, in-built classifier, collector, pulse filter bag, discharging screw convey & valve, blower, muffler, air compressor, electrical control cabinet, sound-proof house.

For each parts, we will configurate different types and brand according to clients' practical needs.

Raw material was firstly crushed into small particles, and then sent to feeding hopper. With screw feeder, such particles will go into grinder unit and displaced on the upper turn-plate. Turn-plate is turning around the middle axis, and the grinder connects with reducer box, it is driven by the grinder motor. The powders will be grind roller by roller, ring by ring, and fall down on the down turn-plate, and they will go through classifier with the airflow, as the high pressure produces negative wind. All the powder will be classified by the high speed turning classifier impeller. Qualified one will go into collector and filter bags. Big one will fall down and be grind again. Most of the powders will fall into the collector, and few of them will go into bag house with the airflow. With the high pressure, the powder will fall down into screw conveyor and discharged from valve.

Advantages of Calcite Stone Micronizer
Calcite Stone Micronizer

1.High efficiency.
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

2.Long life cycle of spare parts.
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.

3.High safety and reliability.
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

4.High fineness, flexible adjustment.
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

5.Environment friendly.
The whole production is equipped with the dust removal system to ensure that the grinding powder is not discharged and the environmental pollution is avoided.
