Bluestone micronizer machine

Bluestone micronizer machine is widely used in chemical, mining, steel, thermal power, coal and other industries. Grinding equipment with this includes: Raymond mill, pulverizer, high pressure micro-powder, high-pressure suspension roller mill. Also included are related equipment for the mill: feeders, bucket elevators, conveyors, conveyors, etc.



Bluestone grinding machine is mainly used in building materials, chemical, fertilizer, metallurgy, mining, refractory, ceramics, steel, thermal power, coal and other industries to grind Mohs hardness below 9 and humidity below 6%. Explosive ore product material, the fineness of the finished product can be arbitrarily adjusted from 30 mesh to 400 mesh. For example, cement (raw clinker), quartz, feldspar, calcite, gypsum, limestone, dolomite, graphite, fluorite, wollastonite, phosphate rock, calcium magnesium phosphate fertilizer, urea, electrolytic manganese metal, manganese ferroalloy, coal, More than 1,000 kinds of materials such as coal gangue, slag, zircon sand, talc, granite, potassium feldspar, marble, barite, ceramics and glass are ground and processed. Weaving dreams, good weaving dreams,



bluestone grinding machine equipment composition:

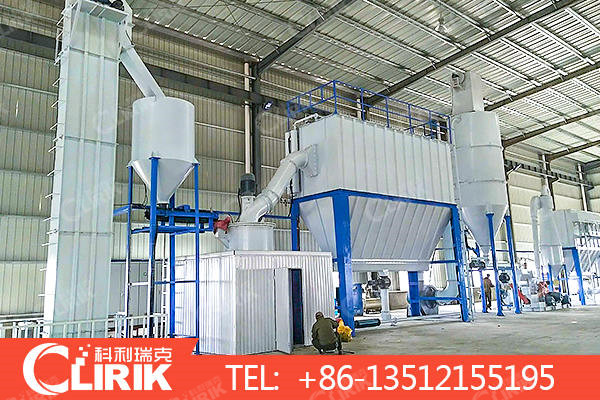

bluestone grinding machine full set including hammer crusher, bucket elevator, storage bin, vibrating feeder, clay mill host, frequency classifier , double cyclone dust collector, pulse dust removal system, high pressure fan, air compressor, electrical control system.



The working principle of the bluestone pulverizer:

When working, the micro-powder motor drives the main shaft and the turntable through the reducer, and the roller pin on the edge of the turntable drives dozens of grinding rolls to roll in the grinding ring raceway. The original clay mineral material is broken into small particles by a hammer crusher and then sent to the storage bin by the hoist. Then, through the vibrating feeder and the inclined feeding pipe, the clay particles are evenly sent to the bulk disc on the upper part of the turntable. . The clay particles are scattered to the circumference of the circle under the action of centrifugal force, and fall into the raceway of the grinding ring, which is impacted, rolled and ground by the ring roller. After three layers of loop processing, it turns into clay powder, and the high pressure fan passes the suction to the outside. The air is sucked into the machine, and the crushed clay powder is brought into the classifier. The rotating impeller in the powder separator re-grinds the coarse clay powder, and the fine powder that meets the requirements enters the cyclone dust collector with the airflow and is discharged from the lower discharge valve, which is the final clay ultrafine powder with a small amount. The fine dust air stream is purified by a pulse dust collector and discharged through a fan and muffler.

Performance characteristics of bluestone grinding machine:
1. Efficient

In the case of the fineness of the finished clay powder and the same motor power, the output of the clay milling machine is more than double that of the jet mill and the ball mill.

2. The service life of the wearing parts is long. The

grinding roller and the grinding ring are forged by special materials. In order to make the durability greatly improved. In the case of the same material and finished product fineness, the wearing parts of the clay superfine mill are 2-3 times longer than the wearing parts of the impact crusher and the turbo crusher, generally up to one year; The grinding machine can process the calcium carbonate, clay and calcite, the service life can reach 2-5 years;

3. The safety and reliability are high.

There is no rolling bearing and screw in the grinding cavity, so there is no problem that the bearing and its seal are vulnerable. , or the problem of destroying the machine due to loose screws;

4. High

product fineness The fineness of the finished clay powder processed by this grinding machine can reach D97≤5μm at one time; 5.Environmental

pollution in the small

grinding machine The use of pulse dusters and mufflers greatly reduces dust and noise pollution to the surrounding environment.

Equipment parameters of bluestone grinding machine:
