2000 mesh white carbon black ultrafine mill adopts HGM ultrafine mill. The production process of ultrafine mill includes several processes of removing impurities, drying, crushing, grinding, grading and collecting. The fineness is up to 325~2500 mesh, output range from 1.2t to 45t.
2000 mesh white carbon black superfine mill
1. 2000 mesh white carbon black uses
2000 mesh white carbon black
White carbon black has high activity, high transparency, high whiteness, and is in the form of powder. It is used in rubber products to improve the tensile strength, elasticity, and tear strength of the rubber compound, reduce the amount of rubber, and reduce production. The cost is mainly used in rubber industry products such as silica gel, paint, paint, ink, handicrafts, shoemaking, tires, cables, etc. It can also be used as a carrier or thickener for pesticides, fire extinguishing agents and paint coatings. White carbon black has high activity, high transparency, high whiteness, and is in the form of powder. It is used in rubber products to improve the tensile strength, elasticity, and tear strength of the rubber compound, reduce the amount of rubber, and reduce production. The cost is mainly used in rubber industry products such as silica gel, paint, paint, ink, handicrafts, shoemaking, tires, cables, etc. It can also be used as a carrier or thickener for pesticides, fire extinguishing agents and paint coatings.
2. 2000 mesh white carbon black ultrafine mill: introduction of HGM ultrafine vertical mill
HGM ultrafine vertical mill can grind white carbon black powder to 325 mesh to 2500 mesh, the specific fineness can be adjusted and processed according to the needs of downstream manufacturers of white carbon black.
HGM ultrafine vertical mill breaks the bottleneck of ultrafine powder processing, ideal equipment for large-scale production of ultrafine powder processing!

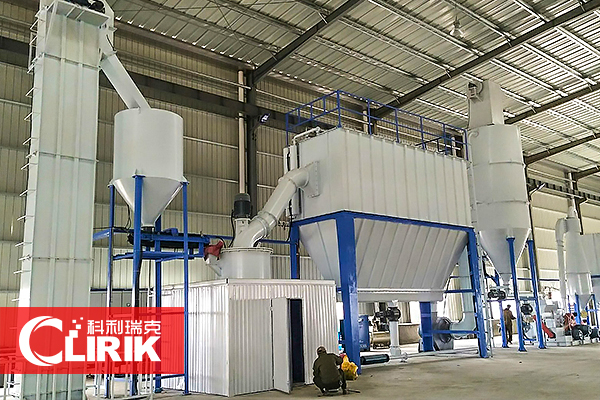

Production process of 2000 mesh white carbon black superfine mill

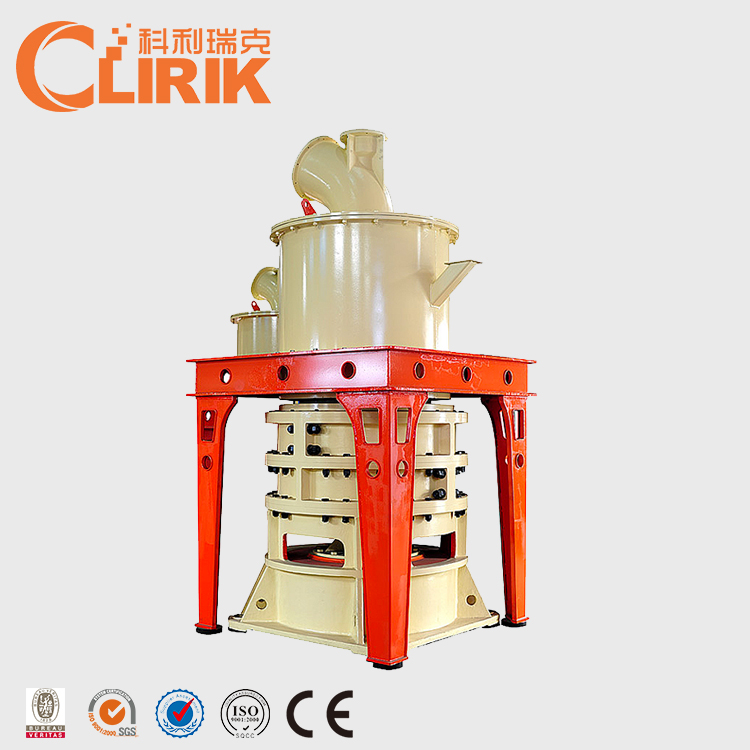

2000 mesh white carbon ultrafine mill: HGM ultrafine vertical mill
Model of superfine mill: HGM white carbon black superfine mill
Finished product size: 3-45μm
Production capacity: 4-40t/h
Scope of application: ultrafine grinding of non-metallic mineral products such as limestone, calcite, marble, heavy calcium, kaolin, barite, bentonite, pyrophyllite, etc., can be used for papermaking, coating, plastic, rubber, pigment, ink, PVC Industries provide high-quality fillers and additives.
3. 2000 mesh white carbon black ultrafine mill: the production process of HGM ultrafine vertical mill
2000 mesh white carbon black ultrafine mill with HGM ultrafine vertical mill production process is mainly the process of the milling section, the white carbon black preparation process in the front section is equipment produced by other manufacturers, we can configure. Below we mainly describe the production process of 2000 mesh white carbon black ultrafine mill using HGM ultrafine vertical mill.
2000 mesh white carbon black is ultra-fine white carbon black powder. The main work of HGM ultra-fine vertical mill is to crush white carbon black to produce ultra-fine white carbon black powder. The specific process flow is as follows:
The first step, the crushing of white carbon black
The white carbon black material produced by the white carbon black preparation equipment is dried and crushed by a crusher to reach a particle size of 30mm, and then fed into the HGM white carbon black ultrafine mill by a quantitative feeder for grinding.
The second step, grinding of white carbon black
The white carbon black particles to be ground are fed into the center of the rotating disc of the rotating HGM white carbon black ultrafine mill by the air lock feeding device. Under the action of centrifugal force, the white carbon black particles move to the periphery of the grinding disc and enter the grinding roller. Under the action of the pressure of the grinding roller of the HGM white carbon ultrafine mill, the white carbon particles are crushed by extrusion, grinding and shearing. At the same time, the hot air is evenly ejected upwards from the wind ring around the grinding plate, and the white carbon black particles after grinding become powdery and blown up by the high-speed air flow at the wind ring. The grinding disc is reground, and on the other hand, the suspended material is dried.
The third step, sorting of silica powder
The white carbon black fine powder is brought into the separator at the top of the HGM white carbon black superfine mill by hot air from the bottom of the HGM white carbon black superfine mill, and the qualified white carbon black powder flows out with the air flow Grinding is collected by the dust collection equipment, which is the product. The unqualified white carbon black coarse powder falls back to the grinding disc under the action of the separator blade, and is re-grinded with the newly fed materials. This cycle completes the grinding operation. process.
The fourth step, the collection of white carbon black powder
The white carbon black powder that can pass through the top separator of the HGM white carbon black superfine mill enters the pulse dust collector through the air pipe, and the white carbon black powder is stored in the pulse dust collector and is waiting for packaging. So far, the production of 2000 mesh white carbon black ultrafine powder is completed.
2000 mesh white carbon black ultrafine mill HGM ultrafine mill is a large ultrafine powder vertical developed by Shanghai Clirik Machinery Co., Ltd. on the basis of vertical mill, which is suitable for the development requirements of non-metallic mineral industry Milling equipment.
